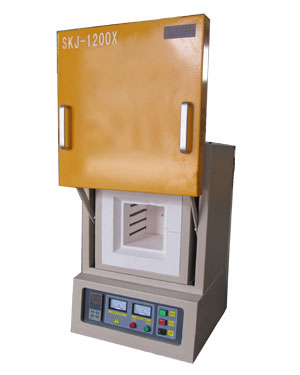

SKJ-1200X Muffle furnace

Uses Resistance wire as heating elements, which can be used up to 1200℃. These compact muffle furnaces are perfect for many applications in laboratory. It is an ideal instrument for materials annealing and sintering in your research.

Size 150x150x150mm (6″x6″x6″), Operation Temperature: 1100℃ (1200℃ for short time), Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation, Heavy duty double layer structure with cooling fan. Lower teperature in outside case, PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier), Power control with 30 segments programmable.

SKJ-1200X Muffle furnace
Chamber Size 150x150x150mm (6″x6″x6″)
Working Temperature 1100℃ (continuous)
Maximum Temperature 1200℃ (for short time)
Temperature Control 30 Steps programmable and PID automatic control
Heating Rate 0~15C/min (suggested ≤ 10C)
Temperature Accuracy +/-1C
Heating Element Resistance wire
Working Voltage AC 220V, Single Phase, 60/50 Hz (or according to your requirement)
Max. Power 3 KW
Outside Size 530x530x920mm
Net Weight 90 Kg

Standard Sizes

Model Chamber size W x H x D in mm
SKJ-1200X 150x150x150mm (6″x6″x6″)
SKJ-1200X 150x150x200mm (6″x6″x8″)
SKJ-1200X 200x200x200mm (8″x8″x8″)
SKJ-1200X 200x200x300mm (8″x8″x12″)
SKJ-1200X 250x250x300mm (10″x10″x12″)
SKJ-1200X 300x300x400mm (12″x12″x16″)
SKJ-1200X 350x350x400mm (14″x14″x16″)
SKJ-1200X 400x400x400mm (16″x16″x16″)
SKJ-1200X 500x500x500mm (20″x20″x20″)
Non-standard size could be made according to your requirement.
