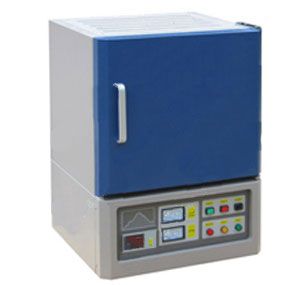

Abrostate-1800X Muffle furnace

Abrostate-1800X Muffle furnace is an effective high temperature Laboratory Muffle furnace. The furnace consists of high quality alumina fiber brick and Superior MoSi2 heating elements with special design, and can be used up to 1800℃. It is an ideal tool for materials annealing and sintering in your research laboratory.

Size 150x150x200mm (6″x6″x8″), Operation Temperature: 1700℃ (1800℃ for short time), Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation, Heavy duty double layer structure with cooling fan. Lower teperature in outside case, PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier), Power control with 30 segments programmable.

KJ-1800X Muffle furnace
Chamber Size 150x150x200mm (6″x6″x8″)
Working Temperature 1700C (continuous)
Maximum Temperature 1800C (for short time)
Temperature Control 30 Steps programmable and PID automatic control
Heating Rate 0~15C/min (suggested ≤ 10C)
Temperature Accuracy +/-1C
Heating Element Molybdenum Disilicide (MoSi2)
Working Voltage AC 220V, Single Phase, 60/50 Hz (or according to your requirement)
Max. Power 5 KW
Outside Size 500x485x820mm
Net Weight 150 Kg

Standard Sizes

Model Chamber size W x H x D in mm
Abrostate-1800X 150x150x150mm (6″x6″x6″)
Abrostate-1800X 150x150x200mm (6″x6″x8″)
Abrostate-1800X 200x200x200mm (8″x8″x8″)
Abrostate-1800X 200x200x300mm (8″x8″x12″)
Non-standard size could be made according to your requirement.
