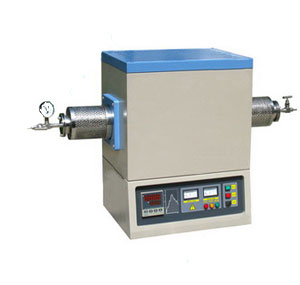

Abrostate-1400G Tube furnace

Abrostate-1400G Tube furnace is a precision furnace using high-quality SiC rods as heating elements. It is widely used for materials or chemical lab to sinter all types of new materials samples under vacuum or other gases condition. It is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy +/-1C and 30 segments programmable up to 1400C.

Size 60x300mm (2.5″x12″), Operation Temperature: 1300℃ (1400℃ for short time), Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation, Heavy duty double layer structure with cooling fan. Lower teperature in outside case, PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier), Power control with 30 segments programmable.

KJ-1400G Tube furnace

Description

Chamber Size 60x300mm (2.5″x12″)
Working Temperature 1300C (continuous)
Maximum Temperature 1400C (for short time)
Temperature Control 30 Steps programmable and PID automatic control
Heating Rate 0~15C/min (suggested ≤ 10C)
Temperature Accuracy +/-1C
Heating Element Molybdenum Disilicide (MoSi2)
Working Voltage AC 220V, Single Phase, 60/50 Hz (or according to your requirement)
Max. Power 4 KW
Net Weight 100 Kg

Standard Sizes

Model Length of Heating zone F x L in mm
Abrostate-1400G 50x300mm (2.0″x12″)
Abrostate-1400G 50x400mm (2.0″x16″)
Abrostate-1400G 60x300mm (2.5″x12″)
Abrostate-1400G 60x400mm (2.0″x16″)
Abrostate-1400G 80x300mm (3.2″x12″)
Abrostate-1400G 80x400mm (3.2″x16″)
Abrostate-1400G 100x400mm (4.0″x16″)
Non-standard size could be made according to your requirement.
